Managing Poser Scenes (02. Camera Intro)

The Poser camera is my eye into the virtual world. There are various kinds of special purpose cameras available, and (via menu Object \ Create Camera) I can add new ones.

The Left / Right, Bottom / Top, Front / Back cameras are “orthogonal” or “2D”. This means that an object keeps its apparent size independent of the distance to the camera, which is bad for believable images but great for aligning objects and body parts. These cameras help me positioning props and figures in the scene.

All other cameras are “perspective” or “3D” ones which mean that objects at a larger distance appear smaller.

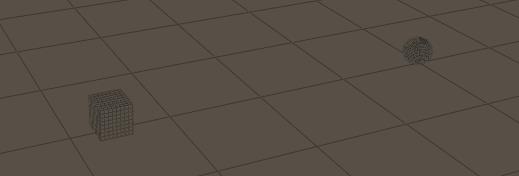

Two objects with some distance As seen by the Left (2D) camera As seen by the Main (3D) camera

The Posing, Left/Right-hand and Face cameras are constrained to the selected figure, and meant to support the posing of body and hands, facial expressions and the precise positioning of hair and jewelry. These cameras help me creating figures the right way. This implies that when I change figure in the scene, the Posing, Hand or Face camera will show something different immediately.

The Shadow Cams help me aiming spotlights. The camera looks through the lamp into the scene which gives me a fine way positioning those lights. For Infinite lights and Point-lights such an aid is far less relevant.

Camera type

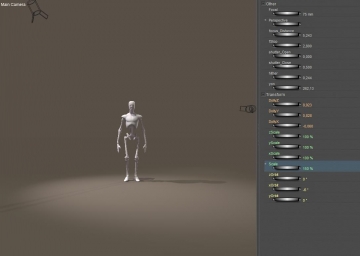

Poser gives me, in each new scene, three cameras to walk through the scene, perform inspections, and take other points of view and everything. These are the Main cam, the Aux-cam (both of the Revolving kind) and the Dolly cam (of the Dolly kind).

Revolving cameras live in Poser space. They rotate around the center (0,0,0) and around the Poser X,Y,Z axes through that center. The angles are called x-, y- and zOrbit. They move according to their own local axes, so when such a camera looks down, an Y-translation makes it move sideways, not up or down. More precise: the camera origin rotates as stated and the camera itself translates against that origin. This is very satisfying from a computational point of view, but very confusing for us, humble human users.

Dolly cameras live in their own space, rotate around their own center and their own axes, like any other regular object. Roll means rotating around the forward axes, like a plane taking a turn. Pitch means rotating around the local left-right axes, making the nose of a ship (or plane) going up and down. Yaw means rotating around the local up-down axis, which is what makes people seasick. They move according to the Poser X,Y and Z axes so if I alter the DollyY value they just move up or down, whatever they’re looking at.

Main and Aux represent nearby and away director overview cams, fixed to the studio. The photographers’ camera, moving through the scene, even animated maybe, and shooting at various angles at will, is best represented by a Dolly camera. So when I create a new, I choose the Dolly kind. Their transform parameters (move, rotate) are easier to understand and especially their animation curves are easier to interpret.

To add some artistic words on camera angle:

  • * I keep the horizon straight, especially in landscapes, unless I’ve good artistic and dramatic reasons not to. The reason is that my audience looking at my image will have a problem identifying themselves with the photographer when they have to twist their neck. In Poser camera terms: don’t Roll.
  • * I shoot straight, in Poser camera terms: I don’t Pitch either. This is interesting because most people tend to take pictures while standing upright and have the camera angle being determined by the position and size of the object. Animals, kids and flowers tend to be shot downwards while basketball players, flags and church bells tend to be shot upwards. So boring, so predictable: we see things in that perspective every day.

Focal length

Now let me put the camera at some distance of the scene or the subject. Depending on what I want to accomplish in my image, I have to zoom in or out by adjusting the focal length. The “normal” focal length for modern digital consumer cameras is 35mm, for analog cameras it was 50mm, and for current Hasselblads it’s 80mm. So, 50mm is considered wide angle for Hasselblad, normal for outdated analog and mild zoom for consumer digital. Poser follows the route of consumer digital. The 55mm initial setting for the Main camera is good for groups and studio work but needs zooming for portraying. The Dolly camera initially reads 35mm, the Aux camera reads 25mm which fits to its overviewing role. New cameras are set to 25mm initially and do need adjustment.

Perhaps you’ve noticed that in real life the modern consumer digital cameras are quite smaller, and especially quite thinner, than the older analog ones. You may know – otherwise: have a look at the – that pro cameras are bigger. And yes indeed, there is a simple proportional relationship between camera size and its normal focal length. Poser supports this relationship to some extend: take the Main camera, and increase the Scale to 150%. You will see it is zooming out, while keeping the same value for its focal length.

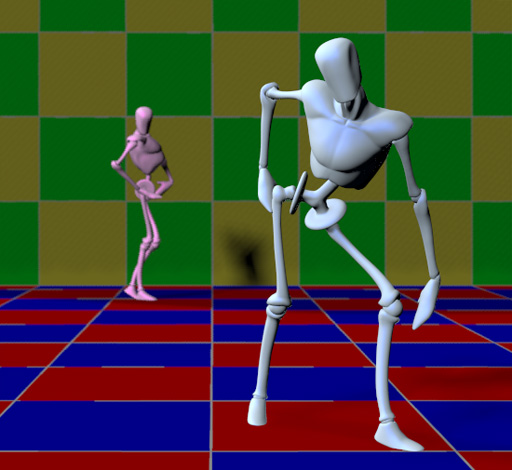

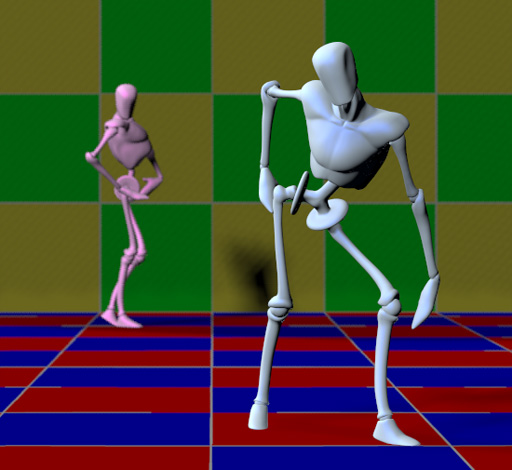

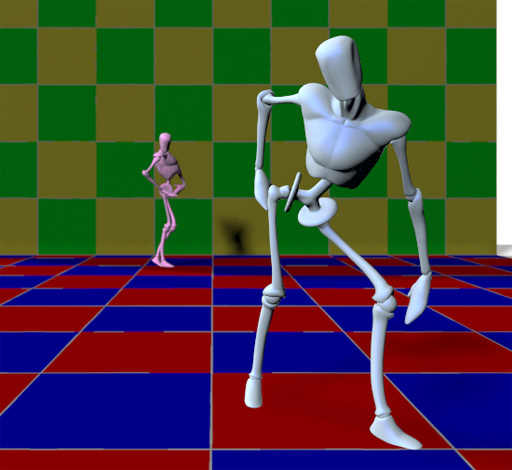

Scale 100%, F=75mm Scale 150%, F=75mm

A larger camera needs a larger focal length to establish the same amount of zoom. But Poser is cheating a bit, which can be seen when I use the Aux camera to watch the behavior of the Main Cam. When scaling up the Main cam, it not only grows but it also moves back from the scene, while keeping its DollyX,Y,Z intact.

Scale 100%
Scale 150%

This is because a Poser Main or Aux camera is the whole thing from 0,0,0 to the view plane capturing the image, and it’s that whole thing which is scaling.

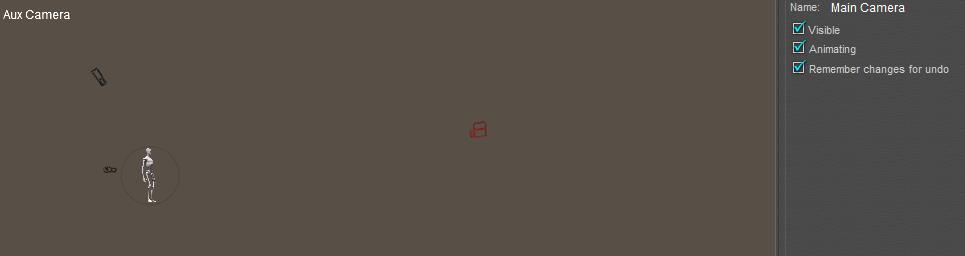

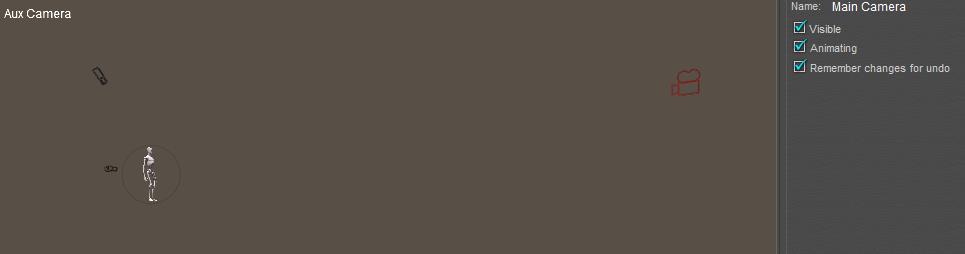

A camera which moves back while the DollyX,Y,Z values remain intact should ring a bell: apparently things are measured in “camera units” which are scaling as well. And indeed: the Focal Distance changes too. Try it:

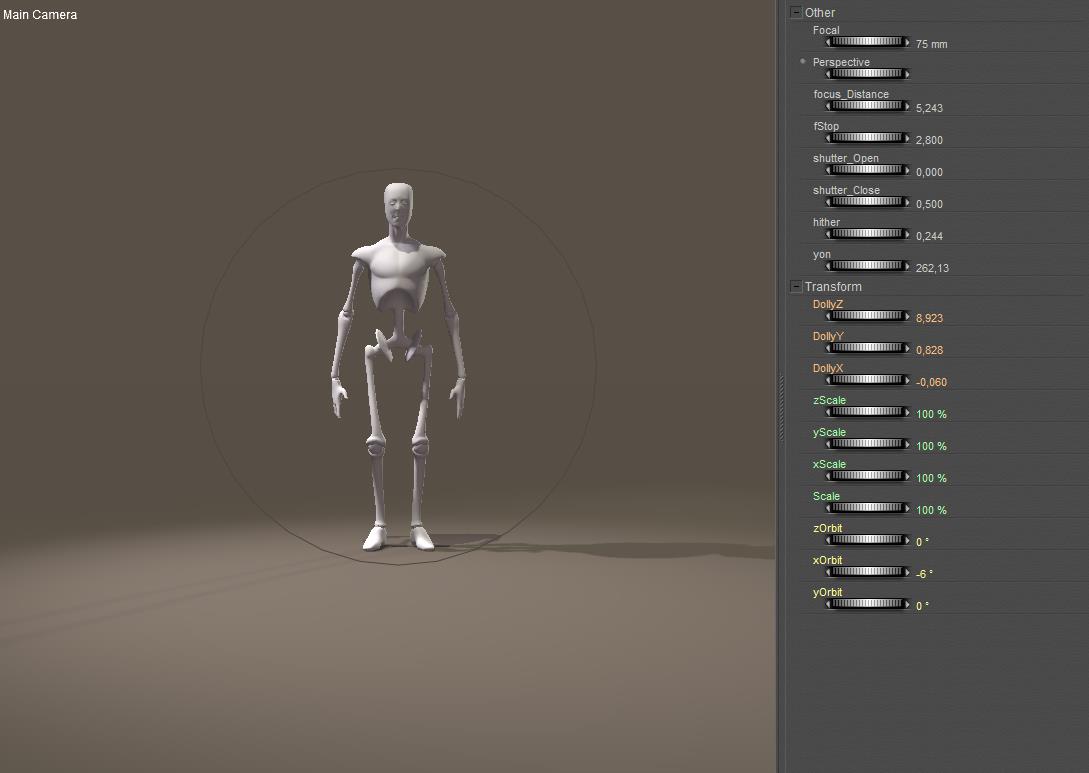

  • Just Andy, just the Main cam, and you’ll find Andy at 11,7 (mtr).

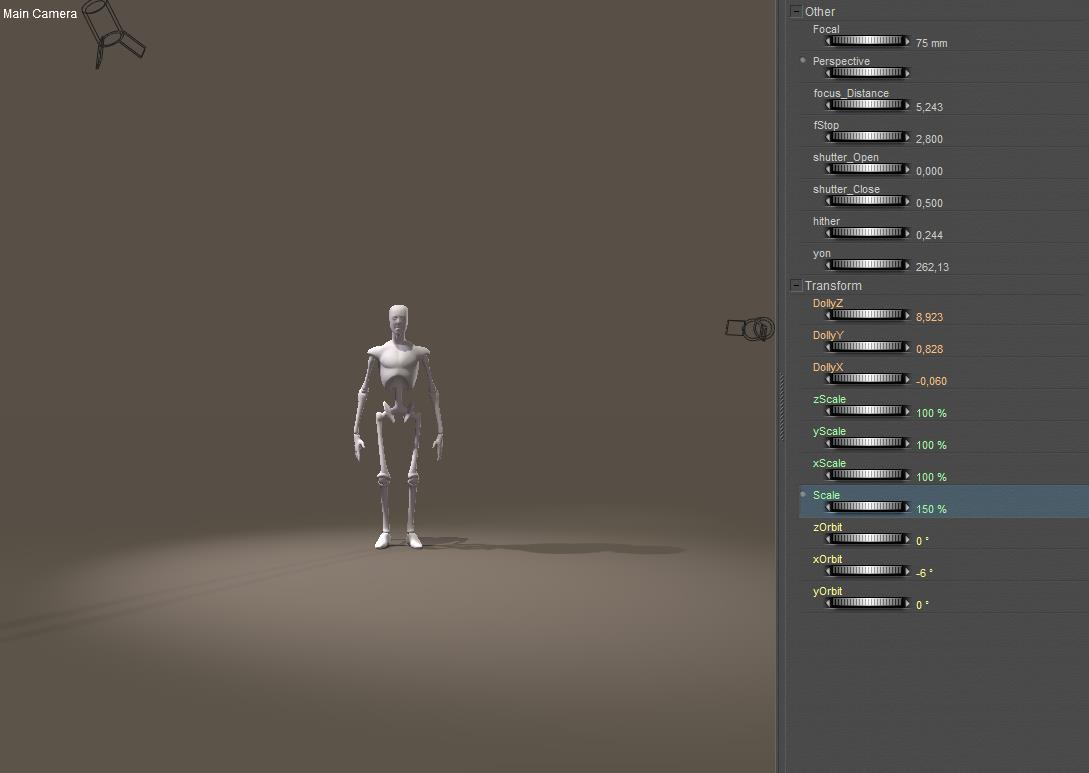

  • Scale the Main cam to 150%, and you’ll find Andy’s Focal Distance at 7,8 (mtr) = 11,7 / 150%.

So while the camera retracts the focal distance DEcreases. Sometimes, Poser is black magic.

Another magical thing: some Poser cameras can scale, others cannot. Main, Aux, Dolly and even Posing cams can scale, but L/R-hand and all user added cams cannot. To some extent, this is a good thing because from the above we learn to watch camera scale as it might present more problems and unexpected results than is does any good. Since I take the habit of shooting my final renders with my own cam, instead of a build in Poser one, I don’t run this risk.

On top of that, cameras show a Focal and a Perspective parameter. Actually, the orthogonal Left/Right etc cameras show a Perspective setting only and go berserk when I try to change it. Other cameras, like the Dolly cam, show the Focal parameter only. Other cams, user added ones included, show both, and both parameters consistently show the same value. So, what’s up?


Have a look at this simple scene, where I enlarge the focal length while walking backwards so Blue Andy remains about the same size in the shot.

20mm (scale 100% fStop=5.6):

35mm: 55mm:
80mm: 120mm:

As you can see, zooming in not only gives a smaller (narrowed) portion of the scene, it also brings the background forward. In other words: zooming flattens the image.

Actually, while zooming in I’ve got to walk backwards quite a lot, which might be undesirable in various cases. This is where the Perspective parameter comes into play. When changing the Perspective from 55 to 120 (218%), I will notice a change in camera size (scale 100 => 218%, zooming out) and a drop in the DollyX,Y,Z values (of 1/ 218%). The scaling enlarges the “camera distance unit” so this change in Dolly values actually makes me stay in the same position in the scene. At the same time the focal length goes up, zooming in. In order to keep Blue Andy about the same size in the image I still have to walk backwards, but far less. Simply, if I use the old 100% DollyXYZ numbers, I’m standing in the right place, Blue Andy has its original size but the perspective of the scene is that of the 120mm zoom lens.

Again: when I change the Perspective (instead of the focal length dial) and I keep the DollyZ etc values intact, then the foreground of the scene remains the same while the background comes forward, while I slowly moves backward myself, and so on. Even the focal distance can keep its value, as it’s measured in the same “camera distance units”.

If you keep standing in place and take the DollyZ as the Perspective dials presents to you, don’t forget to reduce the focal distance (in this example: with 1/218%, or from say 6 to say 3). This, for whatever reason, is not done by the Perspective dial.

Note: some Poser cameras (e.g. L/Rhand cam) have no Scale parameter, but I might change Perspective. This only changes focal length, so I just use that one instead. Scale remains at 100%. Some Poser cameras (e.g. Dolly cam) have no Perspective parameter, but I might change Scale by hand (and DollyX,Y). Some Poser cameras lack both, so I cannot use this Perspective feature at all. This is the case in user added cameras. When I use one of those for my final imaging I don’t have to bother on Scaling and Perspective tricks and troubles. I just cannot turn my digital consumer cam into a Hasselblad by spinning a dial.

Next >>

Managing Poser Scenes (03. Camera Blur & Parameters)

Like a real-life camera, the Poser camera presents us: Focal or Lens Blur (sharpness limits), Motion Blur (speed limits), Field of View (size limits) and even more limits.

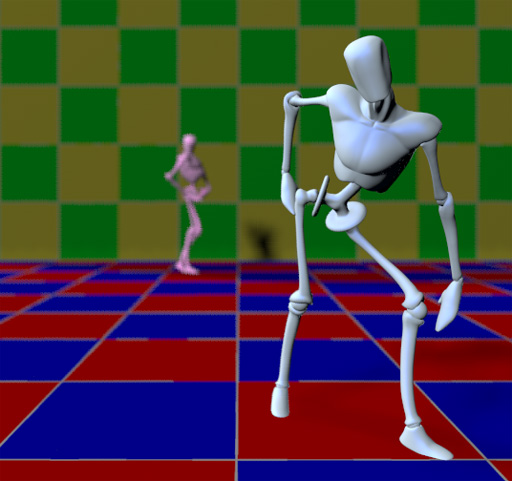

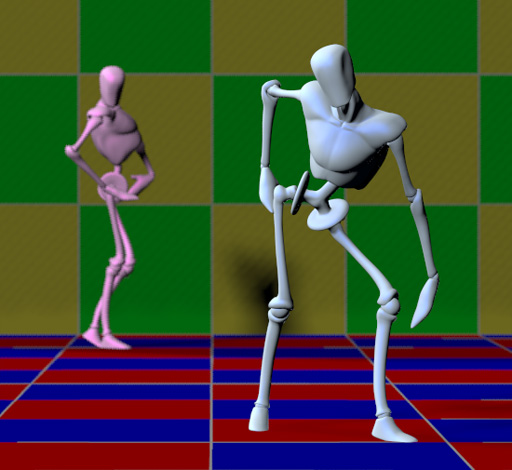

Focal Blur

Focal Bur, or Depth of Field, is in reality the result of focal length, diaphragm (fStop) setting and shutter speed, while also fStop, shutter speed and film speed (ISO) are closely related. In Poser however, there is no such thing as film speed, and the Depth of Field is determined by the fStop setting only. Whatever the shutter speed, whatever the focal length, they won’t affect the focal blur.

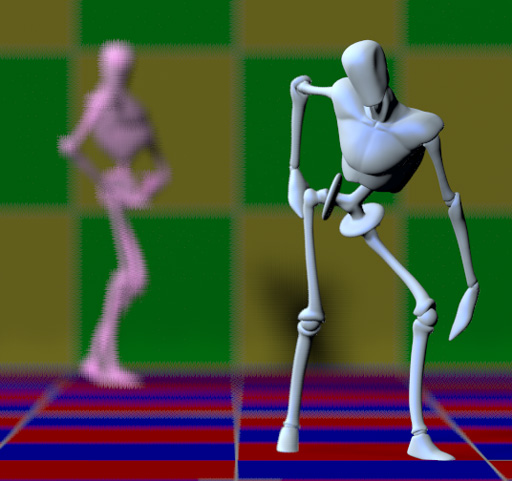

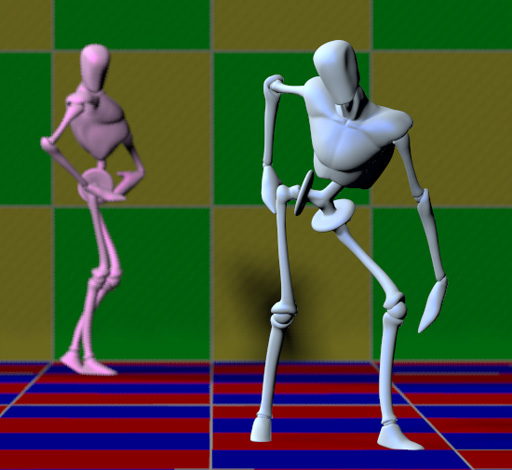

20 mm, fStop 1.4: 120mm, fStop=1.4:

In a real camera, the change in focal length would have brought Pink Andy and the back wall in a sharp state as well. In Poser, the blur remains the same. And because the back end of the scene is brought forward when enlarging the focal length, the blur even looks like it’s increasing instead of the other way around.

Motion Blur

Shutter Open/Close both have values 0 .. 1, Close must be later that Open. The shutter time is measured in frame-time, so if my animation runs at 25 fps the frames start at 0.00; 0.04; 0.08; then Open=0.25 means the shutter opens at 0.01; 0.05; 0.09 or: 0.25 * 1/25 = 0.01 sec after frame start. Similarly, Close=0.75 means that the shutter closes at 0.03; 0.07; 0.11 or 0.75 * 1/25 = 0.03 sec after frame start and therefor 0.02 or 1/50 sec after Open. Contraring to real-life cameras, shutter time does not affect image quality like depth of field, it only affects motion blur or: 3D / spatial blur, in animation but in stills too.

So, a shutter speed of 1/1000 sec translates to a 0.030 value in a 30 fps animation as 0.030 / 30 = 0.001. For stills without motion blur, I just leave the defaults (0 and 0,5) alone. For anything with motion blur, I should not forget to switch on 3D Motion Blur in the Render Settings.

More parameters

The other two parameters: hither and yon, have no physical reference. They mark the clipping planes in OpenGL preview only. Everything less than the hither distance will be hidden, and everything beyond the yon distance will not show either. That is: in preview and in preview render, when OpenGL is selected as the delivery mechanism. Not when using Shreed (the software way of getting previews), not when rendering in sketch mode, not when using Firefly.

Hither = 1, Yon = 100 Hither = 10, Yon =20, near and far ends don’t show in preview. They do show in Firefly render.

This can have a surprising effect. When the camera is inside an object, but less than the hither distance away from the edge, you won’t notice it in the preview because the objects mesh is clipped out. But when you render, the camera is surrounded by the object and will catch no light. This gives the “my renders are black / white / … while I have the right image in preview” kind of complaints.

It sounds stupid: how can one land the camera inside an object? Well, my bets are that it will happen to you when you’re into animation. Smoothing the camera track will give you some blacked-out frames. Previewing the camera track through the Aux camera, and/or adding a ball object on top of the camera entry point (watch shadows!!) can help you to keep the view clear. Just setting the camera to Visible in the preview might not be enough.

Having said that, let’s have a look at the various camera properties.

  • * Focal (length) refers to zooming
  • * Focal Distance and fStop refer to focal blur, and requires Depth of Field to be switched ON in the render settings.
  • * Shutter Open/Close refer to motion blur, which requires 3D Motion Blur to be switched ON in the render settings.
  • * Hither and Yon set limits in the openGL preview.

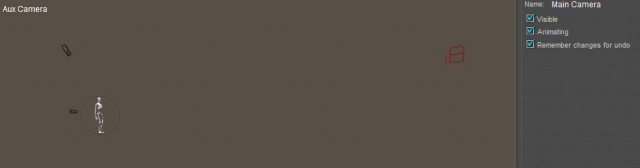

  • * Visible implies that I can see (and grab and move) the camera, when looking through another one. By default it’s ON.
  • * Animating implies that changes in position, focal length etc. are key framed. Great when following an object during animation, but annoying when I’m just trying to find a better camera position during an animation sequence. I tend to switch it OFF.
  • * And I can disable UNDO per camera. Well, fine.


Field of View

In order to determine the Field of View for a camera, I build a simple scene. Camera looking forward, and a row of colored pilons 1 mtr at the right of it, starting (red pylon) at 1 mtr forward. So this first pylon defined a FoV of 90°. The next pylon (green) was set another 1 mtr forward, and so on. Then I adjusted the focal length of the camera until that specific pylon was just at the edge of the image.

Pylon Color Focal(mm) FoV (°) Pylon Color Focal(mm) FoV (°)
1 Red 11 90,0 9 Blue 115 12,6
2 Green 24 53,1 10 Red 127 11,3
3 Blue 36 36,8 11 Green 140 10,3
4 Red 49 28,0 12 Blue 155 9,4
5 Green 62 22,5 13 Red 166 8,7
6 Blue 75 18,8 14 Green 178 8,1
7 Red 87 16,2 15 Blue 192 7,6
8 Green 101 14,2









For simple and fast estimates, note that (pylon nr) * 12,5 = Focal(mm), like 6 * 12.5 = 75, where (pylon nr) is (meters forward) at one meter aside. As an estimate. I can use this for further calculations, e.g. on the size of a suitable background image.

Example 1

I use a 35mm lens, which gives me a 36-40° FoV, and my resulting render measures 2000 pixels wide. Then a complete 360° panorama as a background would require 2000 * 360/36 = 20.000 pixels at least, and preferably 40.000 (2px texture on 1 px result). With a 24mm lens the preferred panorama would require 2* 2000 * 360/53.1 = 27,120 pixels.

Example 2

In a 2000 pixel wide render, I want to fill the entire background with a billboard-like object. For quality reasons, it should have a texture of 3000 (at least) to 4000 (preferably) pixels. When using a 35mm lens, every 3 mtr forward sets the edge of the billboard 1 mtr left, and the other edge 1 mtr right. Or: for every 3 mtr distance from the camera, the board should be 2 meters wide. At 60 mtrs distance, the board should be 40 mtrs wide, left to right, and covered with the 4000 pixel image.


Modern real life cameras do have various modes of Automatic. Given two out of

  • sensitivity (ISO, film speed),
  • diaphragm (fStop) and
  • shutter speed (open time)

the camera adjusts the third one to the actual lighting conditions, to ensure a proper photo exposure.

Some 3D render programs do something similar, like the Automatic Exposure function in Vue.

Poser however, does not offer such a thing and requires exposure adjustment in post. For instance by using a Levels (Histogram) adjustment in Photoshop, ensuring a compete use of the full dynamic range for the image. Poser – the Pro versions – on the other hand, support high end (HDR/EXR) image formats which can survive adjustments like that without loss of information and detail.

The Poser camera is aware of shutter speed, but it’s used for determining motion blur only and does not affect image exposure. The camera is also aware of diaphragm opening, but it’s used for determining focal blur only and again, it does not affect image exposure. The camera is not aware of anything like film sensitivity, or ISO. It’s not ware of specific film characteristics either (render engines like LuxRender and Octane are). With this respect, the Poser camera is limited as a virtual one.

Next >>

Managing Poser Scenes (04. Camera Lens Effects)

In real life, a camera consists of an advanced lens system, a diaphragm and shutter mechanism, and an image capturing backplane. The diaphragm (relates to focal blur of Depth of Field), and the shutter speed (relates to Motion Blur or 3D Blur) were discussed already, and the role of the backplane is played by the rendering engine (which will be discussed in other sections of these Missing Manuals).

Something to note when emulating realistic results, is the relationship between things, which is not looked after by Poser itself. Doubling the sensitivity, speed or ISO value of the backplane increases the visibility of noise / grain in the result, and for the same lighting levels in the result it also doubles the shutter speed (is: halves the net opening time), or reduces the diaphragm opening (or: increases the fStop with +1), or reduces the Exposure (in Poser: halves the value, in Vue: reduces with -1.00).

Hence, when I show pictures of a dark alley, people expect more motion blur (longer shutter time) and/or more grain. When I show a racing car or motor cycle at full speed, people expect a shallow depth of field, and grain too. And so on. Poser is not taking care of that. I have to adjust those camera settings and post processing steps myself.

The other way around, portraits and especially landscapes can do with longer exposure times, and will show nearly no grain in the image and hardly any focal blur (infinite depth of field). And most lenses have their ‘soft spot’ (sharpest result) at fS=5.6 (sometimes 4), by the way.

This leaves us with the lens system. In real life a physical thing, with some weight as well. Physical things have imperfections, and these will “add” to the result. Since the lens system sits between the scene and the image capturing backplane, those additions are added on top of the image. In other words, those imperfections can be added in post, on top of the render. Again, the imperfections are required to make a too perfect render look as being captured by a real camera, adding to the photorealism of the image. When you don’t want photorealism, don’t bother at all.

In the first place, the lens system is a tube and therefor it captures less light at the edges. This is called vignetting. A dark edge on the picture, very visible in old photographs. Modern systems on one hand have better, brighter lenses, and on the other hand the lenses are just a bit wider so the vignetting takes place outside the capturing area.

Vignetting is a must – like scratches – on vintage black and whites.

Second, the lens system consists of various glass elements. This introduces reflections, either within the element (scattering) or on the elements surfaces. The internal, scattering reflections blur the small bright areas of the image, known as glare. The external reflections generate the series of circles or rings, known as flare. The flare shapes can be pentagonal (5-sides), hexagonal (6-sides) or more to circular, this is determined by the shape of the diaphragm.

Glare, the light areas are glowing a bit

Flare, making rings around the bright spots

Flares always exist from a very bright light within the scene towards the middle of the image. The more elements are present in the system, the more reflections we’ll see. Note that fixed length lenses have far less elements than flexible zoom systems.

Another effect, called bokeh, appears when a very dark, blurred background contains small strong highlights. While they take the shape of the diaphragm (like flares) they scatter around in the lens system. Normally they would not be visible, but they are since they are quite strong and the background is dark and blurred. While flare usually occurs in shots with no focal blur (or: infinite depth of field, outer space is a typical example), bokeh requires the background blur due to depth of field / focal blur. In most cases there is an object of focus and interest in the foreground. So, one cannot have flare and bokeh in one shot.

Bokeh Star flare

Third, the diaphragm itself can be the source of distortions: star flare. This usually happens when there are strong highlights in (partially) bright images, where the diaphragm is about closed due to a high fStop number. This tiny hole in the wall refracts light along its edges. A six-piece diaphragm will create a six-pointed star.

Note that the conditions for flare and star-flare contradict: flare needs an open diaphragm due to the dark background (like outer space) while star-flare requires a closed diaphragm due to the bright environment (sun on a winters day). The well-known sci-fi flares (Star Trek), having circular flares ending in a starry twinkle, are explicit fakes for that reason alone. One cannot have both in the same shot.

All these effects can be done in post, after the rendering. Sometimes you need Photoshop for it, perhaps with a special filter or plugin. Vue can do glare and both flares (but not bokeh) as part of the in-program post-rendering process.

Note: some people use flare as a container concept: everything that is causing artifacts due to light shining into the lens directly. Glare, flare, star-flare and bokeh are just varieties of flare to them. No problem, it’s just naming.

Next >>

Managing Poser Scenes (05. Camera Stereo Vision)

Once I manage to get images out of my 3D software like Poser or Vue, I might ask myself: “can I make 3D stereo images or animations as well, like they show on 3D TV or in cinema?” Yes I can, and I’ll show you the two main steps in that process.

Step #1 is: obtain proper left-eye and right-eye versions of the image or animation
Step #2 is: combine those into one final result, to be displayed and viewed by the appropriate hardware

Combining Left- en Right Images

In order to make more sense out of step 1, I’ll discuss step 2 first: how to combine the left- and right eye images.

Anaglyph Maker

For still images, this can be done in a special program like the Anaglyph Maker, available as a freebee on the internet It’s a Windows program. I unpack the zip and launch the program, there is nothing to install. Then I load the left and right images

And I select the kind of 3D image I want to make, matching my viewing hardware. The Red-Cyan glasses are most common, as Red and Cyan are opposite colors in the RGB computer color scheme. Red-Green however presents complementary colors for the human eye but causes some confusion as Magenta-Green are RGB opposites again. Red-Blue definitely is some legacy concept.

When I consider showing the result on a interleave-display with shutter-glasses, or a Polarization based projection scheme, Anaglyph Maker can produce images for those setups as well. Those schemes do require special displays but do not distort the colors in the image, while for instance the Red-Cyan glasses will present issues reproducing the Reds and Cyans of the image itself. This is why images in some cases are turned into B/W first, giving me the choice between either 2D color or 3D depth. Anaglyph Maker offers this as the first option: Gray.

I can increase Brightness and Contrast to compensate for the filtering of the imaging process and the viewing hardware, and after that I click [Make 3D Image].

Then I shift the left and right images relative to each other until the focal areas of both images coincide. The best way to do that is while wearing the Red-Cyan glasses, as I’ll get the best result immediately.

Now I can [Save 3D Image] which gives me the option of saving the Red-Cyan result

Or the (uncolored) left and right images, which are shifted into the correct relative positions.

Photoshop or GIMP or …

Instead of using special software, I can use my imaging software instead. For single stills this might be tedious but for handling video or animations it’s a must, as there is no Anaglyph Maker for handling all movie frames in one go, while Premiere or so are quite able to do that. And then I’ve got my own 3D stereo movie.

  1. 1. Open the Right-eye photo (or film)
  2. 2. Add a new layer on top of it, fill it with Red (255,0,0) and assign it the Screen blending mode
  3. 3. Open the Left photo (or film) on top of the previous one
  4. 4. Add a new layer, fill it with Cyan (0,255,255) and assign it the Screen blending mode
  5. 5. Merge both top layers (the Left + Cyan one) into one layer and assign this result the Multiply blending mode. Delete the original Left+Cyan layers, or at least make them invisible
  6. 6. Shift this Left/Cyan layer until the focal areas or the Right/Red and this Left/Cyan combi align
  7. 7. Crop the final result to lose separate Red/Cyan edges, and save the result as a single image.

Please do note that I found that images with transparency, like PNG’s, present quality issues while non-transparent ones (JPG’s, BMP’s) do not. Anaglyph Maker supports BMP and JPG only. I can swap Left and Right in the steps above, as long as the Right image is combined with a Red layer (both start with ‘R’, to easy remembering), as all Red-Cyan glasses have the Cyan part at the right to filter the correct way.

Obtaining Left-eye and Right-eye images

Although in real life dedicated stereo cameras can be obtained from the market, this is not the case for 3D software like Poser or Vue, so I’ve got to construct one myself. Actually I do need two identical cameras, a left-eye and a right-eye one, at some distance apart, fixed in a way they act like one.

(Image by Bagginsbill)

The best thing to do then is to use a third User Cam, being the parent of both, and use that as the main view finder and if possible, as the driver of the settings of both child cameras.

Such a rig guarantees that camera movements (focal length adjustments, and so on) are done in sync and are done the proper way. Like rotations, which should not take place around each individual camera pivot but around a pivot point common for both eye-cameras. In the meantime, the User Cam can be used for evaluating scene lighting, composition, framing the image and so one before anything stereo is attempted.

Les Bentley once published a Stereo Camera rig on Renderosity. You can download it from here as well, for your convenience. Please read it’s enclosed Readme before use.

Now I’ve grasped the basic principle, the question is: what are the proper settings for the mentioned camera rig? Is there a best distance between the cameras, and does it relate to focal length and depth of field values? The magic bullet to these questions is in Berkovich Formula:

SB = (1/f – 1/a) * L*N/(L-N) * ofd

This formula works for everything between long shot and macro take, is great for professional stereoscopists working in the movie industries, and helps them to sort out the best schemes for anything from IMAX cinema to 3D TV at home, or 3D gameplay on PC. It relates the distance between both cameras, aka the “Stereo Base” SB with various scene and camera settings:

  • * f – focal length of the camera lens (as in: 35mm)
  • * a – focal distance, between the camera and the “point of sharpness” in the scene (as in: 5 meters = 5000mm).
  • * L, N – refer to the nearest and farthest relevant objects in the scene, as in: 11 resp 2 meters. On the other hand, both can be derived from Depth of Field calculations, given focal distance and f-stop diaphragm value.
  • * ofd – on film deviation, as in: 1.2mm for 36mm film. What does it mean? When I superimpose the left- and right-eye shots on top of each other, and make the far objects overlap, then this ofd is the difference between those shots for the near objects. Or when I superimpose the shots on the sharp spot (as I’m expected to do in the final result), then this ofd is the deviations for the near- and far objects added together. This concept needs some translation to practical use in 3D rendered images though. I’ll discuss that later.

So for the presented values: SB = (1/35 – 1/5000) * 11*2/(11-2) * 1,2 = 0,083 meters = 8,3cm which coincides reasonably with the distance between the human eyes.

For everyday use in Poser or Vue, things can be simplified:

  • * the focal distance a will be much larger than the focal length f as we’re not doing macro shots, so 1/a can be ignored in the formula as it will come close to 0
  • * the farthest object is quite far away from the camera, so L/(L-N) can be ignored as it will come close to 1
  • * the ofd of 1.2mm for 36mm film actually means: when the ofd exceeds 1/30th of the image width we – human viewers – get disconnected from the stereo feeling, as the associated StereoBase differs too much from the distance between our own eyes.
  • * It’s more practical to use the focal distance instead of the distance to the nearest object, as focal distance is set explicitly for the camera when focusing.

As a result, to make the left and right eye images overlap at the focal point, one image has to be shifted with respect to the other, for

(Image shift) = (Image width) * (SB * f) / (A * 25)

With image shift and image width in pixels, StereoBase SB and focal distance A in similar units (both meters, or both feet), and focal length f in mm. For instance: with SB=10 cm = 0.1m, f=35mm and A=5 mtr a 1000 pixel wide image has to be shifted 1000 * 0.1 * 35 / (5 * 25) = 28 pixels.

For a still image, I do not need formulas or calculations as I can see the left and right images match while nudging one image aside gradually in Photoshop. But in animations, I would not like to set each frame separately. I would like to shift all frames of the left (or right) eye film for the same amount of pixels, even when focal length and focal distance are animated too. This can be accomplished by keeping SB * f / A for constant, by animating the StereoBase as well.

Next >>

Managing Poser Scenes (06. Rendering Intro)

Like the Poser Camera can be seen as the virtual equivalent of a real-life camera front-end: the body + lens & shutter system, so can the Poser Renderer be seen as the virtual equivalent of the real-life camera backend: the backplane, or film / CCD image capturing device.

The captured image itself is determined by the camera Field of View, the Poser backend does not auto-adjust to lighting variations; it offers a fixed sensitivity. A 100% diffuse white light plainly lighting a 100% diffuse white object will create a 100% white lit area in the result. Adding more lights, and/or adding specular lighting on top of this will make the image overlit: higher lighting levels get clipped and details will get lost.

Given image contents, the Poser Renderer has an adjustable resolution: I can set about any image size in pixels, maintaining the Field of View. Poser Pro also supports 16-bit-per color (HDR, EXR) image output to ease enhancements of low lighting levels in post, and also supports various forms of render passes: splitting the result into separate images for separate aspects of the image, to ease advanced forms of post-processing (see my separate Poser Render Passes tutorial). A real-life camera can’t do all that.

Rendering takes time and resources, a lot. Rendering techniques therefor concentrate on the issue: how to get the most out of it at the least costs. As in most cases, you and me, the users themselves, and our processes (workflows) are the most determining factor. Image size, and limits on render time come second. Third, I’ll have to master the settings and parameters of the renderer. And last but not least I can consider alternatives for the Poser Firefly renderer.

Render habits

In the early days, computers were a scarce resource. Therefore, programmers were allowed to make three tests maximum before their compiled result proved flawless, and could be taken into production. At present, computing power is plenty, and some designers press the Render button about every 5 minutes to enjoy their small progress at the highest available quality. For 3D rendering, any best practice is somewhere in the middle.

Rendering takes time and resources, a lot. But modeling, texturing, and posing (staging, framing, animating) do take a lot of time as well. Therefore it makes sense to put up some plan, before starting any project of some size. Not only for pros on a deadline, having to serve an impatient client. But for amateurs or hobbyists like me as well or even more so, since we don’t have a surplus of spare time and don’t like to be tied to the same creative goals for months.

First, especially in animating, I concentrate on timing, framing (camera Point of View) and silhouettes. In stills, my first step should be on framing, basic shapes, and lighting – or: brightness levels and shadowing. Second, colors (material hues) and some “rough details” (expressions) kick in. Third, material details (shine, reflection, metallic, glass, stains, …), muscle tones, cloth folds (bump, displacement) enter the scene. And finally, increasing render quality and similar advanced steps become worthwhile, but not before all steps mentioned above are taken up to a satisfying intermediate result.

In the meanwhile, it pays off to evaluate each intermediate render as completely as possible and relevant, and to implement all my findings in the next round. I just try to squeeze a lot of improvement points between two successive renders, instead of hitting the Render button for celebrating each improvement implemented. Because that’s so much a waste of time, it’s so much slowing down the progress in my work.

So, while I am allowed more than three test runs for my result, I use them wisely. They do come at some cost.

Render process

So the one final step in 3D imaging is the rendering process, producing an image from the scene I worked on shaping and posing objects, texturing surfaces and lighting the stage. This process tries hard to mimic processes from nature, where light rays (or photons) fly around, bounce up and down till they hit the back plane of the camera, or the retina of my eye. But in nature all zillions of rays can travel by themselves, in parallel, without additional computation. They’re all captured in parallel by my eye, and processed in parallel by my brain.

A renderer however is limited in threads that can be handled in parallel, and in processing power and memory that can be thrown at them. Improved algorithms might help to reduce the load and modern hardware technology might help to speed up handling it, but in the end anything I do falls short compared with nature.

This issue can be handled in two ways:

  • * By reducing my quality requirements. Instead of the continuous stream of light which passes my pupils, I only produce 24 frames a second when making a movie. When making a single frame or image, I only produce a limited amount of pixels. Quality means: fit for purpose. Overshooting the requirements does not produce more quality, it’s just wasting time and resources.
  • * By throwing more time and more power to it. Multi-threaded PC’s, supercomputers, utilizing graphics processors in the video card, building render farms over the Internet or just putting 500 workstations in parallel in a warehouse are one side of the coin. Just taking a day or so per frame is the other side. This holds for amateurs like me, who are happy to wait two days for the final poster-size render of a massive Vue landscape. It also holds for the pro studios who put one workstation at the job of rendering one frame over 20 hours, spend 4 hours on backup and systems handling, and so spits out one frame a day exactly – per machine. With 500 machines in sync, it takes them 260 days to produce a full featured 90 minute CGI animation.

Since technology develops rapidly, and since people have far different amounts of money and time available for the rendering job, either professional or for hobby, I can’t elaborate much on the second way to go.

Instead, I’ll pick up the first way, and turn it into

How to reduce quality a little bit while reducing duration and resources a lot.

Of course, it’s entirely up to you to set a minimum level for the required quality, in every specific case, I can’t go there. But I can offer some insights that might be of help to get there effectively and efficiently.

Next >>

Managing Poser Scenes (07. Rendering Quality)

Since mankind started cinematography, it was well understood that the human eye could not discriminate individual images when they passed by at a rate over say 18 a second. So by setting a 24 frame per second rate on film (or 25 (PAL) / 30 (NTSC) for video/television) a reduction of resources was derived without any meaningful loss of quality – referring to the visual experience of the spectators.

Next to chopping a continuous stream of light over time, we can chop it over space and divide an image into pixels. Again, this can be done without any meaningful loss of quality if we take the limitations of our eyes into consideration.

Very good and very healthy eyes have a discriminating ability of about 1 bow-second. One can’t do better than that. One full circle makes 360 degrees, 1/60th of a degree makes a bow-minute and 1/60th of a bow-minute makes a bow-second. When I’m looking forward in a relaxed way, I can oversee about 70° really well while say 150% of that (105°) is covering the entire range from left to right. This 70° makes 70*60*60 = 252.000 bow seconds (378.000 for the 105° field), so it does not make sense to produce anything over that amount of pixels which has to be viewed from the left to the right of our visual range.

Unfortunately, this is hardly a relief as I do not intend to render images with a width or height in that amount of pixels. Fortunately, our eyes and brain become of help. In the first place, we don’t all have “very good and very healthy” eyes, they just aged over time like we did ourselves. In the second place, the extremes occur with our pupils wide open which is not the case when viewing images under normal lighting conditions. In cinema and before a monitor (television) it’s even worse: the image is radiating light in a darker surrounding closing our pupils even further.

As a result, a standard used commonly in research on visual quality takes the 1 bow-minute (and not the second) as a defendable standard for looking at images on TV or in cinema. Then, the relaxed view range of 70° requires just 70*60 = 4200 pixels while the full range (for surround and IMAX, say) requires 150% of that, a 6300 pixels wide image.

This can be compared with analog film. IMAX is shot in 70mm (2.74”) film size and a film scan can produce about 3000 pixels/inch before hitting the film grain limits, so IMAX can be sampled to at most 2.74 x 3000 = 8220 pixels and fills our visual range completely. In other words, for a normal relaxed view 4.000 x 3.000 does the job, while say 6.000 x 3.000 does the job in the full left to right range, for anything monitor, TV or cinema.

This is reflected in current standards for pro cameras:

Standard Resolution Aspect Ratio Pixels
Academy 4K 3656 × 2664 1.37:1 9,739,584
Digital cinema 4K 4096 × 1714 2.39:1 7,020,544
  3996 × 2160 1.85:1 8,631,360
Academy 2K 1828 × 1332 1.37:1 2,434,896
Digital Cinema 2K 2048 × 858 2.39:1 1,757,184
  1998 × 1080 1.85:1 2,157,840

For print, things are not that different. An opened high quality art magazine with a size of 16”x 11” (2 pages A4) printed at 300 dpi requires an 4800 x 3300 pixel image, which brings us in the same range as the normal and full view on monitor, considering our eyes as the limiting factor.

Of course one can argue that a print on A0 poster format (44”x 32”) might require 13.200×9600 pixels for the same quality but that takes people looking at it from the same 8” distance they use to read the mag. From that distance, they can never see the poster as a whole. Hence the question is: what quality do they want, what quality do you want, what quality does your client want?

I can also reverse the call: in order to view the poster in a full, relaxed way like we view an opened magazine, this A0 poster which is 2.75 times as long and wide should be viewed from a 2.75 times larger distance, hence from 22” away. In this case, a printing resolution of 300/2.75 (say: =100 dpi) will do perfectly.

Thus far, I’ve considered our eyes as the limiting factor. Of course, they are the ultimate receptors and there is no need to do any better, so this presented an upper limit.

On top of that, I can consider additional information about the presentation of our results. For instance, I might know beforehand that the images are never going to be printed at any larger format than A4, which halves the required image size (in pixels, compared to the magazine centerfold) to 3300×2400 without reducing its visual quality.

I also might know beforehand that the images are never going to be viewed on TV sets or monitors with a display larger than say 2000×1000 (wide view), which reduces the required image size to 1/3rd in width and 1/3rd in height, hence 1/9th in the amount of pixels to be rendered, compared to the full wide view of 6000×3000 mentioned above for anything monitor or cinema.  Which might bring me the required quality in just 1/9th of the time as well, but … at a reduced visual quality. The resolution of our eyes is just better than the output device, and I might want to compensate for that.

Quality Reduction Strategies

Render size

The main road to get quality results efficiently is: not to render in larger size than needed. An image twice as large, meaning twice as wide and twice as high takes four times longer to render, or even more if other resources (like memory) become a new bottleneck during the process.

Render time

As said in the beginning of this chapter, not much more can be done when the renderer depends on algorithm, hardware and image size alone. This for instance is the case with the so-called “unbiased” renderers like LuxRender, which mimic the natural behavior of light in a scene as much as possible. More and faster CPU cores, and more and faster GPU cores sometimes as well will speed up the result, but that’s just it.

Let me take the watch-scene (luxtime.lxs demo file) on my machine, at 800×600 size. The generic quality measure (say Q) is calculated by multiplying the S/p number (samples per pixel, gradually increasing over time) by the (more or less constant) Efficiency percentage which refers to the amount of lighting available.

  • * Draft quality, Q=500, after 4 mins. Gives a nice impression of things to come, still noisy overall.
  • * Basic quality, Q=1000, after 8 mins. Well-lit areas look good already, shadows and reflections are still quite noisy
  • * Decent quality, Q=1500 after 12 mins, well lit areas are fine now
  • * Good quality, Q=2000 after 16 mins, shadows are noisy but the reflections of them look nice already
  • * Very good quality, Q=3000 after 24 mins, good details in shadow but still a bit noisy, like a medium res digital camera, shadow in reflections looks fine now
  • * Sublime quality, Q=4000 after 32 mins, all looks fine, hires DSLR camera quality (at 800x600m that is).

From the rendering statistics, render times at least can be roughly predicted for larger render results. LuxRender reports for the watch-scene, given my machine and the selected (bidirectional) algorithm, a lighting efficiency E of 1100% and a speed X of 85 kSamples/second. These parameters can be derived quickly, from the statistics of a small sized render (200×150 will do actually, but I used 800×600 instead).

From the formula

 Q = 1000 X*E*T / W*H, for image Width and Height after time T,

 I get

 4000 = 1000 * 85 * 11,00 * T / 800*600 so T = 2053 sec = 34min 12sec

And from that I can infer that a 4000×3000 result, 5 times wider and 5 times higher, will take 5*5=25 times as long, that’s: half a day, as long as memory handling does not hog up the speed. Furthermore, quality just depends on lighting. Lighting levels too low or overly unbalanced cause noise, like on analog films or digital captures. Removing noise requires more rendering time. Specular levels too high (unnatural) cause ‘fireflies’ which don’t go away while rendering longer. I just have to set my lighting properly. And test for it in small sized brief test runs.

Next >>

Managing Poser Scenes (08. Rendering Options I)

Some render engines, called Unbiased or Physics based, mimic the behavior of light and real materials for obtaining their results. There is not much room for tricks or compromises, such engines require loads of resources, heavy machinery and might be slow as well. Other render engines, called Biased, come with bags full of tricks to shortcut the resource requirements while getting reasonable results fast. Poser and Vue offer such biased renderers. Of course they offer maximum quality settings which come as close to the unbiased ones as possible. But it seriously pays off to understand the enormous benefits of a somewhat reduced quality, and a slight deviation from the reality of nature.

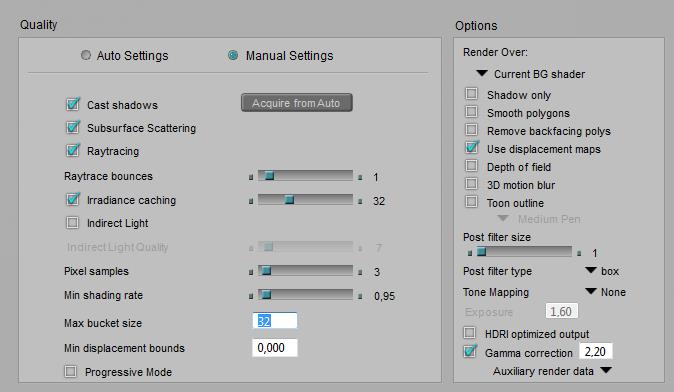

So let’s start to discuss the options for the Poser Firefly renderer.

Shadow handling

Individual lights can be set to warp shadows, individual objects can be set to cast shadows, but the Cast Shadows option can switch them all off. Or: only when it’s ON, all individual settings are taken into account. By switching OFF, a completely shadowless render result can be produced. This makes sense when the action is combined with a Shadows Only render. This combined action results in two images which can be merged in post, and enables me to set the shadow intensity afterwards. It’s the first step in rendering with passes, as discussed in a separate tutorial on this subject.

A shadowless render also makes sense when calculating shadows takes a lot of time (eg when the scene contains loads of lights), while the shadows are not the issue yet in that specific stage of the project. Then switching OFF Cast Shadows is a time saver.

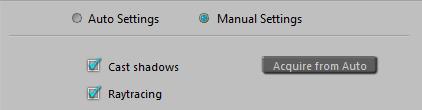

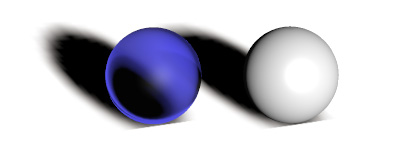

Cast shadows          \ Shadow only NO YES
ON Default, render with shadows Shadows only pass
OFF No-shadows pass Empty result, meaningless

Polygon handling

Individual objects can be set to smooth, but the Smooth Polygons option can switch them all off. Or: only when it’s ON, all individual settings are taken into account. Switching OFF is a time saver at the cost of neat object shapes, which might make sense when precise object shapes are not the issue yet in that specific stage of the project.

Since the Poser renderer is clever enough not to take polys into account that do not contribute to the result anyway, the Remove Backfacing Polys option sounds like a manual override, which it is. Because it also disables the polys which are not facing the camera, but do contribute to the result in other ways. These might play a role in reflection (be visible in a mirror), refraction, indirect light emission, object shape and shadow via displacement, to name a few. Generally checking this option will cause a serious drop in quality while hardly saving rendering time, let alone exceptional scenes rendering on legacy hardware. So this might make sense when temporarily testing your main reflections and the like.

Displacement handling

Objects might use displacement mapping in their materials, but this only takes place when the Use Displacement Maps render option is checked. It details (subdivides) the object mesh and can increase memory requirements enormously. Displacement mapping is a good way of adding detail to objects at intermediate distances from the camera. Objects closer to the camera should have the details modeled in, objects further away can do with bump-mapping alone or – even farther away – without any mapping of this kind.

Displacement mapping might give the renderer some issues to handle, see the Divide & Conquer paragraph below.

Focal and motion blur

Focal blur, or Depth of Field (DoF) calculations, takes the Focal Distance and fStop diaphragm of the camera into account but does require an extra step in rendering which takes some additional time. Leaving it OFF puts the entire scene in focus, ignores the physical properties of a real-life camera lens, and contributes to the artificial, unrealistic feel of 3D renders. Of course, the DoF effect might be added in post as well.

Motion Blur takes the shutter Start and Stop settings of the camera into account, and also introduces an extra step in rendering which takes additional time. Leaving it OFF puts the entire scene in a temporary freeze, suggesting infinite camera speeds or figures that can hold their breath and position for a split second, which by the way might be quite accurate for many situations. Also, switching it ON when the scene contains no animation at all only puts a burden on the rendering process without contributing to the result. On the other hand, do note that outdoor still shots with no blur at all on the tree leaves, grasses and animals around make quite an unnatural impression as well.

Scattering and Raytracing

A relatively new node in materials is the Subsurface Skin node, which adds some translucency effects to a surface as is present in muddy waters, human skin and waxy candles. It requires an extra render preparation pass, which is performed when a) such material nodes are present in the scene and b) the Subsurface Scattering option is checked. So, unchecking the option is meant for speeding up draft renders of scenes with scattering-intensive surfaces.

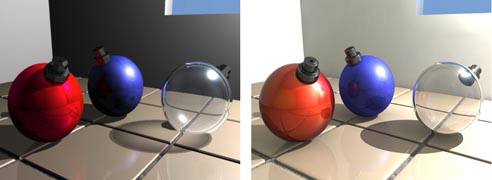

Raytracing addresses reflection and refraction of the actual surrounding objects by a surface, each pass or reflection of/onto a surface is called a “bounce”. Raytracing does not handle direct lights, does not handle scattering and does not handle reflection maps, but requires explicit reflection and refraction nodes in the material. When the Raytrace option is switched OFF those nodes are ignored, which is meant for speeding up draft renders of scenes with raytracing-intensive surfaces.

Note: using lights with raytraced shadows, and Indirect Lighting techniques also require Raytracing to be switched ON in Render Settings.

Each time a light ray bounces (reflects or passes a surface) it loses a bit of its energy, so it gradually fades out and dies. In real life, the number of bounces a light ray can make is quite large, and infinite in theory. To speed up (test) rendering in very bounce-intensive scenes (like a shiny car in the midst of glass and mirrors in an automotive commercial), I can set an upper limit to the Bounces. Poser will cut off the tracing of that ray when that limit is met, and of course this can introduce artifacts, black holes in the resulting render.

For final renders, the highest value is the best. It comes closest to nature’s behavior. It’s an upper limit for cut-off, so when no ray makes more than 3 bounces anyway, raising the value from 6 to 12 won’t make difference at all. You’re not forcing Poser into unnecessary raytracing, you’re just reducing artifacts, if any.

Indirect lighting


Irradiance caching is a technique which speeds up the calculations for Indirect Lighting (IDL) as well as self shadowing, or Ambient Occlusion (AO). A low setting implies a low number of samples taken from the scene (it’s a percentage, 0-100%). The colors, shadows and lighting levels for intermediate points are interpolated from them. This is faster, and less accurate. A high setting implies a more accurate result, at quite longer calculation times. For very high settings it might be better to turn off the mechanism completely to avoid the additional overhead of saving intermediate points and interpolating: just uncheck the option at all.

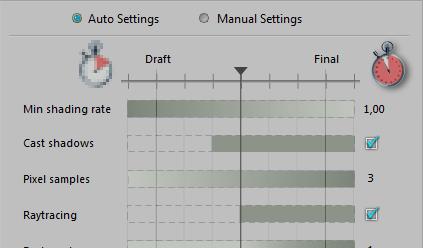

What are good values then? Well, have a look at the Auto-settings: values below 60 are not even suggested, which means Poser samples about every other point (just over 50%) for an initial draft result. Final renders take values up to 100, while any value over 95 could be better replaced by switching off the caching at all. Nature does not cache irradiance, so why should we?

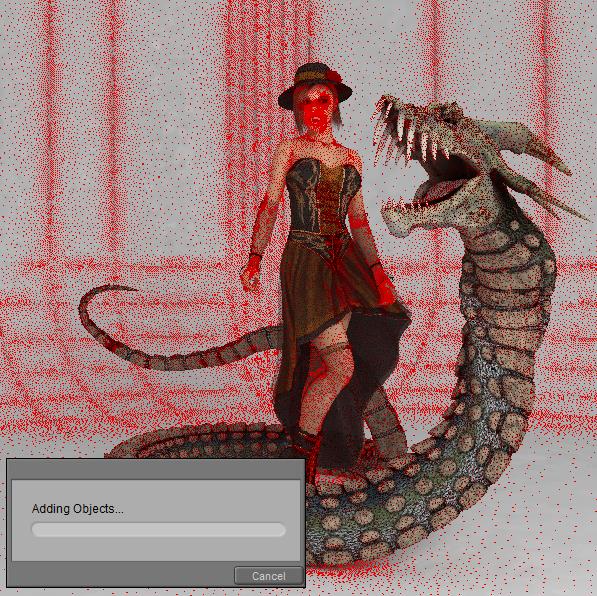

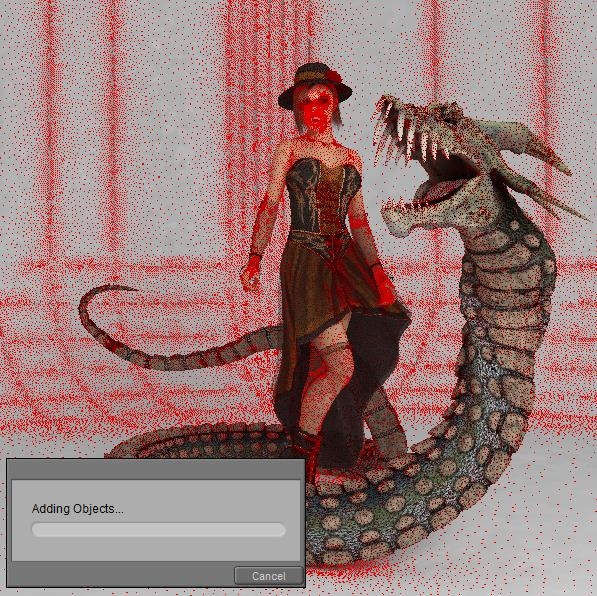

During the IDL pre-pass, red dots in the scene reveal the Irradiance caching.

When the density is too low, the value can be increased, and vice versa. When the option is switched OFF, the caching / red dots substep is skipped and the IDL is calculated directly, for all relevant points in the scene.


Indirect lighting (IDL) turns objects into light sources. Either because they bounce direct (and other indirect) light back into the scene, changing its color and intensity. Or because they emit light themselves, due to very high settings (> 1) of their Ambient material channel. The method mimics natural lighting methods at their best, but requires an additional – time and resource consuming – rendering pass. Unchecking the option speeds up draft renders, but you lose the lighting as a consequence.

Indirect Lighting requires raytracing to be switched on, and the Bounces setting is taken into account as well. A low Bounces setting make the light rays die quickly, resulting in lower lighting levels, especially in indoor scenes lit from the outside. Here again, the highest setting is the most natural but will lengthen rendering time. Also, Irradiance caching is taken into account: lower values render faster but use interpolated results instead of accurate ones.

Irradiance caching arranges for the ratio between determined and interpolated rays, but does not set the amount of them (or density, per render area). This is done with the Indirect Light Quality slider, higher values make more rays shot into the scene for IDL, with longer render (that is: IDL pre-pass) times accordingly. It’s a percentage (0..100%) of something. For final renders, one could say: just set 100 for quality. This certainly might hold for large stills. On the other hand, slightly lower values render much faster without reducing image quality that much.

Speed vs Quality

So I did some additional research, rendering a scene with various settings for Irradiance Caching as well as IDL Quality. My findings are:

  • * When either Irradiance Caching or IDL Quality is set below 80, the result shows splotches, while AO-sensitive areas (near hair, head/hat edge, skirt/leg edge, …) get too less light and produce darker shadows. These effects are noticeable for my eyes, I can tell them without knowing beforehand where they will show up in the result, and especially the splotches create low-quality impressions.
  • * When IDL Quality is increased, rendertime only gradually increases while the splotches disappear. So this is some low coast / high result kind of improvement. Until the value exceeds 90, then the improvements are not really noticeable anymore.
  • * When Irradiance Caching is increased, rendertime goes up fast, and say doubles till 90 is reached, and quadruples or worse when values get even higher. The main effect is on the quality of the (self)shadows in the AO sensitive areas, which I consider not the most relevant. So this is a high cost / low result kind of improvement, but for values up till 85 it also contributes to the splotch reduction.

So my preferred settings are 80 and up for both Irradiance Caching and IDL Quality, in any case. I tend to set IDL Quality to 90, and Irradiance Caching to 85 increasing to 90 depending on my findings in the specific render results.

The shorter render times can be relevant, especially when producing animated sequences. The best settings depend on the scene and require some experiments with a few frames, before rendering out the complete sequence.

Tips & Tricks

The Poser manual present some tips for handing IDL effectively.

  • * IDL means light bouncing around, and performs best when the scene is encapsulated within some dome, or room, or enclosure. Especially the SkyDome might offer self-lighting as well.
  • * Reduce the amount and intensity of (direct) lights, especially under SkyDome lighting conditions. One main light and one support light might be sufficient.
  • * Smearing indicates the IDL is short of detail, so increase Irradiance Caching. Watch the red-dots prepass.
  • * Splotchiness indicates the IDL takes too many samples, so reduce Irradiance Caching and increase Indirect Light Quality for compensation
  • * Use Raytraced shadows instead of shadow maps, increase Blur Radius to say 10 (and shadow samples to 100, I like to keep the 1:10 ration intact).
  • * Ensure Normals Forward is checked for all materials (this is the case by default, but anyway)
  • * When using IDL in animations, render all frames in the same thread on the same machine. As said in the manual. Apparently, some random sampling and light distribution takes place when rendering, and this random process is seeded by thread and machine ID for various good reasons (as in: to avoid apparent pattern tiling and repetition within the render result). Unfortunately, multi-threading and multi-machine network rendering are essential for producing animations. So actually, the manual says: do not use IDL for animations. That’s a pitty, isn’t it? So I suggest to experiment with the settings, raise the Quality, consider to switch off Irradiance Caching (that eliminates at least one IDL related random sampling process, although it might be a rendertime killer), and evaluate some intermediate test runs. Things might be not that bad after all.

Some additional tips from my own experience:

  • * Direct lights with inverse linear attenuation, and especially with inverse square attenuation, can create hotspots when put close to a wall, ceiling or other object. Those hotspots propagate through the scene presenting “light splotches” all around. Increasing Indirect Light Quality, raising (or unchecking) Irradiance Caching and taking light absorbing measures around the lights are some ways to go.
  • * Sources of indirect light, being too small or placed too far away from the relevant objects in the scene, will produce lighting levels which are too low. This can present “shadow splotches” all around. Using large light sources nearby the object, and using direct lights instead, are ways to go.
  • * Indirect Light works on Ambient and Diffuse only, and produces a serious amount of all-around ambient lighting, including Ambient Occlusion. But it does not work on Specularity, and it’s not very good in producing specific, determined shadows from objects. Using direct lights for those specific purposes instead is the way to go. As is “photography is painting with light and shadow”, IDL is a mighty tool for painting with light. For painting with shadow, use direct lights instead.
  • * Lots of objects are completely irrelevant for bouncing indirect light around, they will not illuminate neighboring objects anyway. Test unchecking the Light Emitter option for those objects. Especially check on
    • * Skin. In various material settings, some ambient is added to mimic translucency (subsurface sampling) in older versions of Poser or to speed up the rendering. As a result, the skin will act as a light source under IDL. Switch it off.
    • * Hair. Lightrays can bounce around forever; it takes loads of time and resources, and accomplishes nothing. Switch it off, to speed up the IDL pre-pass. However, taking those surfaces out of the IDL loop might produce flat, dull results. In this case one either has to take the long render-times for granted, or one has to seek additional measures like adding in some extra AO for depth somehow.

Next >>

Managing Poser Scenes (09. Rendering Options II)

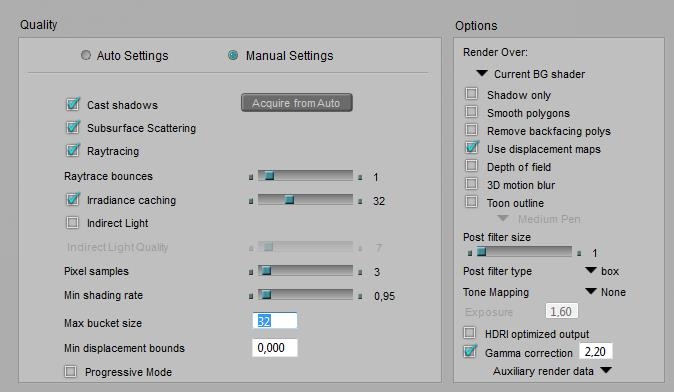

The Poser Firefly renderer presents us a shipload of additional settings, in order to sacrifice the resulting quality (a little bit) at the gain of better resource utilization (a lot). Do keep in mind that the renderer – based on the Reyes algorithm, from the last decade of the previous century – had to perform well on single threaded PC’s, running at a 100MHZ clock and memory banks in the sub-Gb range. Current machines run at tenfolds of those numbers, in all areas.

Image sub-resolution


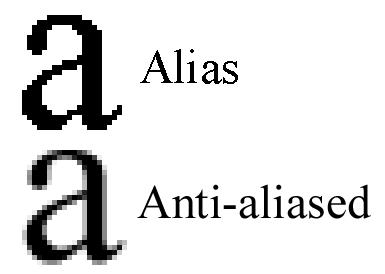

Anti-aliasing (or AA for short) is a well-known technique to avoid jagged edges made by the individual pixels along a skewed line in the resulting image. AA introduces additional sub-pixels to be calculated around the main one, and then the color of the main pixel is derived from itself and its neighbors.

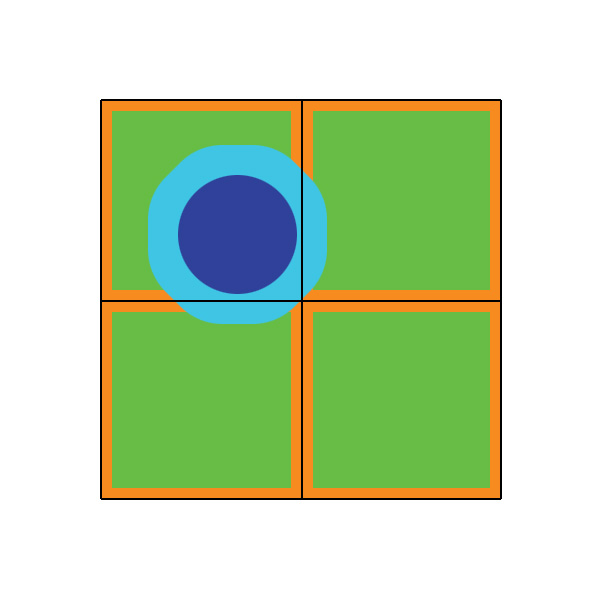

The Pixel Samples setting determines the amount of neighbors for each pixel, higher settings make better quality:

  • 1, only the main pixel is taken into account, no Anti Aliasing takes place

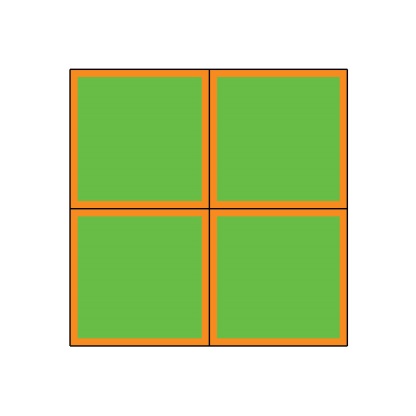

  • 2, the four neighboring pixels are taken into account, it requires 2 times as much pixel renders
  • 3, eight neighboring pixels and the main pixel itself are taken into account, it requires 4 times as much renders This choice delivers “pretty good” results for any kind of electronic publishing (TV, Web, …)

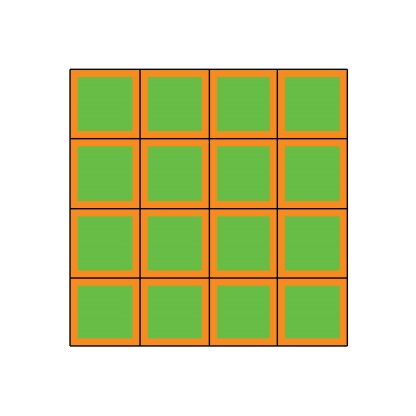

  • 4, sixteen neighboring subpixels are taken into account, requiring 8 times as much pixel renders
  • 5, twenty-four neighboring pixels plus the main pixel itself are taken into account, requiring 16 times as much pixel renders. This one is blowing up your render time, and delivers “extremely good” result of any kind for high end printing. Especially in this area one has a choice between
    • a high pixel count (high dpi number, say 250) with modest AA (say 3) and
    • texture filtering (say Quality) settings, and a modest pixel count (say 125) with high settings for AA (say 5) and texture filtering (say Crisp).

The first can be expected to render longer with lower memory requirements: more render-buckets with less sub-pixels per bucket. Actually, I never use 5 for high end printing results: I prefer to render at a larger image size. So, the default value 3 is considered one that hardly needs adjustment: it does do AA, it takes the main pixel itself into account and is fit for all electronic and most print publication. Use 1 for draft renders, switching off AA in the results.

Micro polys

The basic routine of Firefly is to break a mesh down to micro-polys, which then are assigned a texture fragment, and are rendered accordingly. The Min Shading Rate denotes the minimum amount of pixels in the final render result that are covered by a single micro-poly. In other words, this setting sets a minimum size for the micro-polys and stops Poser from subdividing any further. Lower settings make better quality, and blow up memory use while rendering.

So, the value 0.1 implies that each micro-poly is (at least) 1/10th of a pixel in size. At most, so this 0.1 relates quite well to the default “3 Pixel Samples” setting for AA. It does not make much sense – very specific scenes excluded – to keep the 3 pixels for AA while reducing the Min Shading Rate to 0.01 allowing at most 100 microploys per pixel in the final render. The extra information is not going to be used while taking up a lot of memory for the micropolys. Inversely, it does not make much sense to keep the 3 pixels for AA while increasing the Min Shading Rate to 1 allowing for at most 1 micropoly per pixel. Where is the extra information for the Anti-Aliasing coming from then?

Reasonable combinations seem to be:

  • Pixels = 1, Min Shading Rate = 1.00 to 0.50 – good for drafts
  • Pixels = 3, Min Shading Rate = 0.10 to 0.05 – the default
  • Pixels = 5, Min Shading Rate = 0.02 to 0.01 – the extreme

Note that the Shading Rate relates the size of micro-polys to the size of pixels in the render result. This implies that when we set larger render dimensions, each original poly and object in the scene will get broken down to a finer granularity automatically.

Texturing considerations

Say, I’m rendering out to a 1000×1000 image result. In the middle, I’ve got a head, or a ball or any other object, which takes say 500 pixels in the render. To surround that object with a texture, that texture needs to be 1000 pixels in size to match the output resolution. Half of the pixels will show in the image, half of them will be hidden facing backwards. From information theory (Nyquist etc, sampling statistics) it is known that one should have a texture quality for input which is at least two times the quality of the output. Hence, the head needs a texture map of 2000 pixels in size, at least. And anything over 4000 might be overkill.

If the head takes a smaller portion of the resulting render I might not need such a large texture map, but when I consider to take a close up facial portrait, I might need more. Because when the resulting render of 1000 pixels shows only half the head (or more precise: 25% of the head as it shows half of the visible part facing the camera), then I’ll need 2 (Nyquist) x 4 (the 25%) x 1000 = 8000 pixels for a good texture map, which runs into the Poser limit of 8192 for texture sizes.

Also, when I consider larger render results, I might need larger texture maps as well. How does all this relate to the other findings above?

The 3×3 Anti-Alias requirement will subdivide the 1000×1000 render result into 2000×2000 subpixels, and this two-folding neatly matches the Nyquist pixel-doubling requirement for good texture maps. So the AA and the texture mapping are on the same level of detail. Since 5×5 Anti-aliasing can be seen as a limit, resulting in 4000×4000 subpixels, the fourfold texture sampling can be seen as a limit too. That’s why I said above: anything over 4000 might be overkill in that situation.

When an object is broken down to micro-polys, and one micro-poly matches more than one pixel in the texture map, and/or more than one pixel in the resulting render, we can imagine some loss of quality. So I want a few micro-polys per pixel in both cases. A Min Shading Rate of 0.5 gives me micro-polys of half the size of an output pixel which can be considered Low Quality (draft), but a value of 0.1 gives micro-polys of 1/10th the size of an output pixel, which is enough to support a serious 3×3 AA requirement. Since a decent input pixel (from the object texture map) is 50% to 25% the diameter of an output pixel, I’ll have 4 to 16 input pixels covering the output pixels. A Min Shading Rate of 0.1-0.05 will generate say 10 to 20 micro-polys covering an output pixel. Good match. So this value is enough to support good texture mapping and offers a few micropolys per texture-map-pixels without being overkill.

Conclusions on Resolution

  1. 1. The default settings for Pixels (3) and Min Shading Rate (0.1 – 0.05) are good for all quality results. Settings could be reduced to 1 / 0.5 for draft renders. Settings could be increased to 5 / 0.01 for high-end printing when increasing render size is not considered.
  2. 2. However, for high end printing, increasing render size is the preferred route over raising the settings.
  3. 3. Object texture maps should offer at least 2, at most 4 times the render resolution. That is: an object which takes 50% of the render width / height should be surrounded by a texture which offers at least twice as much pixels (width/height) as the resulting render.
  4. 4. This way, Render resolution, Texture resolution, Anti-alias rate (pixels) and Min Shading Rate are mutually balanced, all supporting the same quality level.

Divide & conquer

In order to handle the rendering by a multi-core, multi-threaded machine, each render is chopped in pieces; the buckets. Each bucket delivers a square portion of the result, say 32×32 pixels, although at the edges of the render the buckets might be less wide, less high, or both (in the corner). Each bucket is handled as a single thread CPU process with its own set of memory, addressing its own set of objects in the scene. And when there are either too many threats running in parallel, or each thread takes too much memory as it’s too crowded or too textured, on might face memory issues while rendering.

Max bucket size

In order to address these issues, one can either reduce the amount of threads running in parallel (in the Edit > General Preferences menu, Render tab) or the Bucket size. One might expect that halving the bucket size reduces memory requirements to 25%, while quadrupling the amount of threads required to perform the render. The latter won’t make a difference as each thread handles just 25% of the previous render size. In reality, neither will be the case, because the bucket-rendering takes some objects from neighboring buckets into account by adding a (fixed width) edge around it: the bucket overhead.

For example: Say the bucket-edge is 8 pixels wide, and I consider a 64×64 bucket, then it will render (64+2×8)2 instead of 642 pixels, that is 156% of its contribution to the result. But when I consider a 32×32 bucket, it will render (32+2×8)2 instead of 322 pixels, that is 225% of its contribution. So resource requirements will be 225/156=144% higher than expected. Memory demands will not drop to 25% but to about 35%, while rendering will take say 45% longer due to overhead increase. When I consider a 128×128 bucket instead, it will render 126% of its contribution, memory requirements will go up 4*126/156 = 324% instead of 400% while processing will take 126/156 = 80% of the time – that is for the rendering part of it, not the preparation passes for shadow mapping, and SSS or IDL precalculations.

So reducing bucket size should be done when facing memory issues only, and even then the question is whether such should be done manually. This is because the value entered in Render Settings is a maximum value. Poser will use it as a limit, but will reduce the bucket size dynamically when facing excessive resource issues. So altering the value is a manual override of the Poser behavior, which only makes sense when Poser itself falls short.

On the other hand, increasing bucket size will have some flaws too. When the rendering is chopped in too few pieces, you will soon run out of threads to load your CPU cores, and they remain idle till the last one is finished. In other words: your CPU resources are used less efficient.

My recommendations:

  • * On a 32-bit system, use 32 for most renders but reduce to 16 for very crowded scenes or increase to 64 in scenes with just a few figures and props.
  • * On a 64-bit system, double those values, and double again when there is plenty of RAM available.

A note on render hotspots

Some renders present a spot in the image where rendering takes all the time, that one bucket is slowing down the entire process. Reducing bucket size maybe of help then, when it concerns an area that can be distributed over multiple threads. When it really concerns some kind of small spot, even the smallest bucket will hold up everything, and reducing bucket size is not the solution. It’s not causing harm either, though, for that render.

The question is: what is causing the hotspot, and are other cures available? Sometimes, object- or material options might be reconsidered:

  • * When it concerns hair, conforming or dynamic, it should have its Light Emitter property checked OFF This might affect the quality of the rendered hair, in which case compensation-method should be considered. Something which adds in AO for a bit extra depth, perhaps.
  • * Some shiny surfaces, like teeth, could do with specular only and don’t need full reflection

Things like that.

Max displacement bounds

Displacement mapping might change the size of an object. Poser has to take this into account in order to determine whether or not an object is relevant for the rendering of a bucket, even when the object itself resides outside the bucket area. The object-size should be increased a bit, then. Poser does a decent job in doing so, using the material settings, and using the bucket edges as discussed above, but might fall short in cases. In those cases, the details of the displacement seem to be chopped off at the boundaries between buckets.

This can be fine-tuned in various ways, and increasing bucket size is one of them. Similarly, decreasing bucketsize increases the risks for the mentioned artifacts. Another measure is blowing up the object size a bit extra. The Min Displacement Bounds in Render Settings does so for all objects (with displacement mapping) in the scene. The Displacement Bounds in the Object properties do so for the individual object specifically. And the first overrides the second when the latter is less. As a result, the object or all objects take a bit more space, and I’ll have more objects per bucket on the average which might increase memory requirements and render time a bit. Setting a value is relevant only when the artifacts pop up, as Poser does a good job by itself except for very complex shader trees (material node setups). But setting any (small!) value does not do any harm either except from the additional resource consumption.

Note that both Min Displacement Bounds and object Displacement bounds both are in Poser Native Units, whatever your Unit settings in the General Preferences. 1 PNU = 8.6 feet = 262.128 cm, or: 1 mm = 1/2621.28 = 0.0003815

Image handling


The Poser Firefly render and material system offer loads of options to produce photoreal results: Subsurface Scattering, Indirect Lighting, Focal and Motion Blur to name a few. On the other hand, the shader tree offers a Toon node, and the Render settings offer an outline function. In my personal opinion, mixing the Toon and the Photoreal options gives some misplaced feelings. One might need reflections, and some softening of shadows and highlights in a toon render. But does one need Subsurface Scattering and Indirect Lighting? Your render, your call.


Of course one can sharpen render results in post, but the filter presented here is applied in an earlier stage: while the result is build up from subsamples, like anti-aliasing. Anti-aliasing will blur the render a bit to take the jags out of the edges, but that affects the fine textured areas as well. The filter brings back those details to some extent.

The values mean:

  1. 1. no filtering
  2. 2. limited sharpening, fine for female skin, rough outdoor clothes and textures with mild detail
  3. 3. stronger sharpening, fine for male sin, fine indoor clothes, short animal fur, lots of detail and the like
  4. 4. extreme sharpening, disadvised

As the purpose of sharpening is: to bring back the details and color contrasts from the texture maps into the resulting render, the SINC option performs best.

SINC, filtering 1 SINC, filtering 2 SINC, filtering 3 SINC, filtering 4

Snakeskin texture, from not filtered (left) to overly sharpened (right).

Tone mapping and Gamma Correction

Correcting images for Gamma and Exposure is a world in itself; I dedicated a special Understanding Corrections tutorial on this.

Exposure Correction, or: Tone Mapping, can be done in post as well for still images, and in most cases it’s not used. Doing it in Poser is a benefit in animations, as it’s applied to all frames on the go.

Gamma Correction, available in Poser Pro 2010 and up, and Poser 10 and up, is a different story. It works rather different from alike processes in post. It hardly affects the main colors in the render result but it certainly softens the highlights and shadows from lighting and shading the objects around. To some extent, Gamma Correction (GC) as implemented in Poser is a way to deal with the far too strong effects on shadows and highlights from the infinitely small direct lights, as used in 3D renders. But so is Indirect Lighting (IDL). This leaves the question whether two steps in the same direction are not just one too many. Should GC and IDL be used in combination, or should one use either the one or the other?

Well, in scenes using IDL, additional direct lights usually provide specularity (as IDL cannot provide this). They also provide local lighting effects, like photographers are using flashes and reflectors to brighten up their shots. In those cases, GC does have a role too. Also, IDL mainly affects the overall lighting level in the scene when large objects, especially a SkyDome, are emitting light all around. In those cases, GC might not have a role. So, the extent to use GC in IDL lit scenes is up to you. You might go for the full amount (value 2.20), or for none at all (switch it off, or set the value to 1.00), or for somewhere halfway (set the value to 1.50 then, or try 1.20 or 1.80 instead).

Saving results

Poser stores its render results in 16-bit per color (48 bit per pixel + transparency) EXR files, in
C:\Users\(your account, might be admin)\AppData\Roaming\Poser Pro\10\RenderCache

Poser can translate those when exporting to the 8-bit per color BMP, TGA, JPG (all without transparency) and the TIF, PNG or even PSD (all with transparency) format, and the 16-bit per color HDR or EXR format (Poser Pro only). Lossy formats like JPG are recommended only when the render does not require any additional post processing anymore, otherwise the lossless TIF, PSD and hires HDR or EXR are recommended instead. Saving to lossy formats should be the final step.

After rendering, the final result is dithered a bit to eliminate banding in subtle gradients and various antialias situations. For the results exported in HDR/EXR format, this is something unwanted, as it might intervene with additional processes in post. The render setting HDRI-optimized output skips this dithering when checked. Note that this will lead to suboptimal results when exporting in any 8-bit per color format.

Poser Pro also can export various aspects of the render separately, like Diffuse, Specularity, Depth and more. This is behind the Auxiliary render data option. This way, all those aspects can be merged in post. Merging in the shadows was already discussed above in this tutorial. More on this in my separate tutorial on Poser Render Passes.

Other options


One can define a series of settings for various steps in the workflow (draft, intermediate, final for web, final for print), and for various types of result (Toon, Photoreal, …). And then save and load those settings as presets.

Raytrace Preview

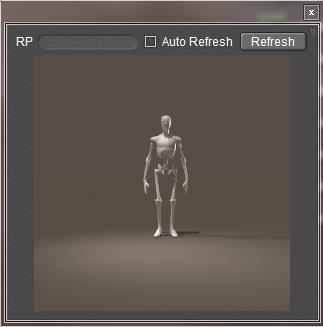

Progressive Mode is a new option to Poser 10 / Poser Pro 2014. It greys out various options from the render settings, and leaves a few which affect the result of the Raytrace Preview window. The ones greyed out will get a standard setting or value, the manual does not tell us which.

Do note that the Raytrace Preview will use those standard values even when they’re not greyed out by the Progressive Mode switch. The switch is just an aid in managing the behavior for this new Preview window.

Do note that when Progressive Mode is left switched ON when rendering, those standard settings are used for the render result as well. This presents you a result which is a larger version of the contents of the new Raytrace Preview window. Switch Progressive Mode OFF to enable the other options again.

My personal observation is that this Raytrace Preview does not work out very well with IDL lit scenes. It does give some clues on the lighting levels, but the result itself is far too coarse for anything else. It does work out great in diret lighting though, and… it’s a Raytrace Previews after all, not an IDL Preview.


From the Render Settings window one can call for the Render Dimensions (= size of the result) dialog, as the similar Poser menu option is out of reach when the Render Settings window is active. Also the rendering can be sent to Background or to the Queue (Poser Pro), instead of running in the foreground. Or the settings can just be saved. That is: to be used when clicking the Render button at the top right of the Document window.

Next >>

Managing Poser Scenes (10. Rendering Alternatives)

Firefly by the camera icon in the Document panel, or via the Render Settings menu, is not the only way to get renders out of the Poser scene. Poser itself offers some alternatives, and other programs can be called upon as well.

Toon and Sketch

In the “good old” days I had a Toon Render, which now is replaced by a Toon node in materials (Lighting Diffuse group), and an Outline option in Render settings. And I’ve also got a Sketch Render, which still is around and can turn my renders into something artistic. Of course, I can do all that in post, using Photoshop, or GIMP or alike. But Poser can apply those techniques to all frames in an animation as well, supporting me to create artistic looking movie shots as well.

Render Script

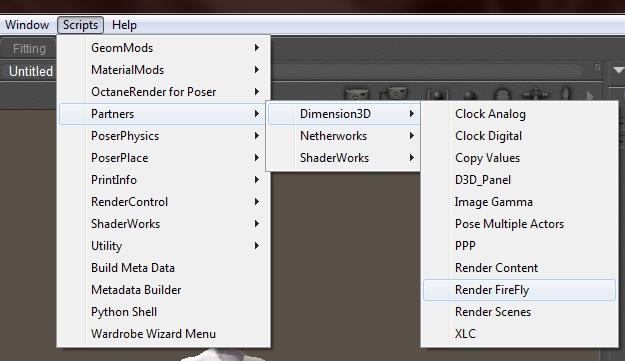

Something completely different is the ability to launch Firefly via the Scripts > Partners > Dimension3D > Render Firefly menu.

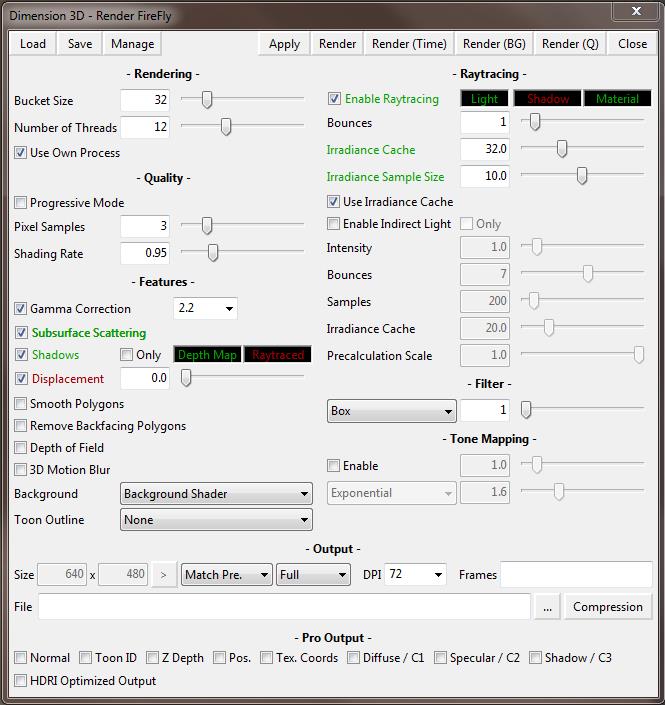

This presents a window where all available options are presented, and a few more are added too.

  • * The Load / Save / Manage buttons handles Setting Presets
  • * The Close button just closes the window, while Apply closes the window too, but will apply the settings when clicking the camera icon on top of the Document panel.
  • * Next to rendering in foreground, background or in queue (some of these are Poser Pro only), the Render (Time) option will start rendering in foreground while reporting rendertime afterwards. Nice for benchmarking, and for testing the effects of parameter settings on performance.
  • * Bucket Size (max value) comes from the regular Render Settings, Nr of Threads and Use Own Process both come from the General Preferences, the latter one as Render as Separate Process.
  • * Progressive Mode greys out several options, Pixel Samples (the AntiAlias setting) and Shading Rate which regulates the (minimum) size of the micro-polys all come from Render Settings.
    • * Also most other options can be found in Render Settings, though some come from Movie Settings, the File (and its compression settings) are especially meant for Queue / render to disk handling, including the HDRI-optimized output option at the bottom row. Just above that you’ll see the Render Pass options (Normal… Shadow/C3) as can be found as Aux Render Data in the regular Render Settings.
    • * More interesting is that Indirect Lights has its own Bounces and Irradiance Cache parameters, leaving the others for reflection and AO I guess.
    • * Like the regular Render Settings, I can type in values instead of using the corresponding slider. But this time, the values are not bound to the same limits. So while in Render Settings the (max) Bounces are limited to 12 for slider and value as well, I can enter 99 as a value in here. Which, for whatever reason, can produce surprising results when entered for both Raytracing and Indirect Lighting (see Andy’s joints).

External Renders

Poser scenes can be transferred into other 3D programs, and rendered in there, either by using a common 3D format, or because the other program can read Poser scenes directly. Some of them offer special import modules, or even offer complete integration.

The issue in using any of those external renders is: generally I lose my Poser camera and light settings or have to redo them at great extent, while I also lose many advanced Poser material features and have to exchange the materials for the ones native to that specific program. The gain is: better results, sometimes faster, or just having Poser stuff put into another scene.

Daz Studio ( – Posers’ main competitor according to many. I’ll have to redo camera, light and anything materials but the basic stuff.
Bryce ( – one of the first affordable raytracers, and landscape builders, enabling me to place characters in some environment. But results keep having that typical “3D look”, while Poser itself improved on Indirect Lighting and so on.
Carrara  ( – a complete integrated 3D modeling and 3D painting pack nowadays, including landscape building and quite good environmental lighting. It really places Poser characters in some context, I’ve not much experience with it myself but user notes tend to be quite positive. Some other 3D modeling packs (e.g. LightWave) might offer similar functionalities, and some users apply 3DS MAX to access the famous V-Ray render engine.
Vue ( – an advanced landscape builder which can deal with indoor scenes as well, the Pro versions are used in Big Screen Cinema (Pirates of the Caribean etc). It has very good environmental lighting and a surplus on vegetation. It can read Poser scenes directly, but also it can integrate which means: using the Poser dials from Vue to modify and animate poses (expressions, morphes, etc) and using the Poser material tree directly. Actually this requires Poser and Vue running in parallel on the same content, which requires all the additional resources (memory!) for doing so. Poser cameras and lights are ignored, I’ll have to deploy the Vue ones (which includes area lights).

PoseRay ( – is a freeware importer to the good old POVray renderer (, and the KerkyThea renderer ( as well – which are both freeware too, by the way. It does translate camera, light and basic materials and both renderers produce quite neat results. Actually, POVray was about the first, free, raytracers available for PC but suffered from the lack of a decent graphical user interface and additional modeling capabilities. Later on, MoRay closed that gap a bit for the modeling aspect but then Bryce had already entered the stage…
InterPoser ( – is an advanced importer for Cinema4D.

Pose2Lux (freeware, and Reality ( – are both importers for the (free) LuxRender ( physics based / unbiased renderer. This means that glass, metals etc get the optical properties of those materials in real life, while also all lighting is dealt with according to all laws of physics. Camera and most lighting are taken into account, many Poser material features are covered but it’s very recommended to exchange them for “real” Luxrender materials. Next to its very realistic results, LuxRender supports some rendering in the Graphics Card (GPU) using the OpenCL protocol, which might speed up things on both nVidia as ATI cards.

Octane ( – also is a physics based / unbiased renderer, rendering completely in nVidia Graphics cards (ATI not supported, it uses the CUDA protocol), which is supported by a Poser-importer-plugin which also handles camera, lighting and material transitions. Next to its very realistic results, it integrates with Poser giving me just an additional viewport which responds almost immediately (!) to any alterations in materials, lighting, camera properties, pose etc. This interactivity just depends on the power of the video cards, the faster the better. Although this kit costs as much as Poser itself it’s the perfect way of balancing materials and IDL lighting interactively.


Of course, it depends…

When you’ve already got Vue or Carrara, you can experiment with these instead of installing and learning extra kits. But it does not make much sense (at least to me) to purchase any of them just for rendering Poser scenes.

When you’re on a tight budget, the LuxRender route (either via Pose2Lux or Reality) is worth considering but also the PoseRay/KirkyThea route might be worthwhile. Except from reality (about $50), the rest is in the freeware zone.

When you can afford the extra hardware, extra software costs ($200 for Octane, $200 for Plugin) and you like the almost-real-time responses, the Octane route is the one for you; it does come with a (limited) demo version for your trials too.

Some considerations for selecting videocards:

  • * Octane is based on CUDA processing, this requires nVidia, it does not run in ATI cards
  • * The CUDA process puts a limit on the amount of texture maps. Poser puts a limit on the size of texture maps. Hence Octane for Poser makes it unlikely that you’ll ever need extreme amounts of videoram. This marks the GFX Titan card (6Gb) as overkill, especially since the amount of videoram is the major price driver for cards. Since 2Gb can be considered “low spec”, your main choice will be: 3Gb or 4Gb (per card).
  • * Multiple cards can be used, SLI is not required (or should even be turned off). Multi-card configurations do need the extra space in the box, the extra power and cooling capacity. For more than two cards one can consider PCI expander boxes ($2000 without cards), like netstor NA255A (
  • * Videoram between cards is shared, so a card with 2Gb plus a card with 4Gb make a configuration with 2Gb effective. Note that dual-GPU cards like the GFX 790 might advertise 6Gb, but actually offer two 780’s with 3Gb each so you’ll get 3Gb effectively.
  • * Processing power between cards is added up, power is determined by (amount of CUDA’s) times (clock speed) for single GPU cards, and say75% of that for dual-GPU cards which turn out to be less effective with that respect. But they require the same space in the box as a single GPU card, that’s their benefit. Generally, overclocking videocards does pay off a lot.

The ultimate alternative of course is to master Poser lighting and materials. That might take a lot of time: high end handling of Indirect Lighting, and setting up shaders trees to properly match the characteristics of glass, metals and the like, really do require a learning curve and preferably an engineering background to grasp the details of optics.

And still, Firefly will present some limitations, it just cannot do things. Like light passing through a volume of glass (or water, …) is not colored nor reduced through the volume, but at the surface only. Likewise, shadows from colored glass objects remain black.

This is why the new products are that popular, despite of the costs or having to learn some new software: you don’t need your Master in Poser Materials or an engineering degree in Physics, you can get better results (KirkyThea, POVray) or even real-life ones (LuxRender, Octane) and in some cases: you get them faster (Octane).

Next >>

Managing Poser Scenes (11. Lights Intro)

Generally, lighting 3D scenes can be done in two ways: direct / lamp based or indirect / image based.

Direct lighting requires “lamps”, light emitters without size or shape. Direct light produces strong shadows and highlights, which give depth to an image. Poser supports: Infinite lights, Point lights and Spotlights. Although their lighting is very controllable and can be good, their infinitely small size results in unnatural, hard and sharp shadows which do not take environmental (walls, ceilings, …) and atmospheric effects into account. Even in real life photographers prefer softboxes over halogen spots.

Indirect lighting in Poser supports: SkyDomes, light emitting objects (scifi clothes, neon signs, …) and radiosity (the red ball producing a red shine onto its neighborhood, a white wall brightening a dark alley). This kind of lighting is much harder to control, is hardly visible in the Poser preview, but the lighting itself is much softer, shadows are softer, blurred, brighter and sometimes about absent which gives a more natural impression especially in outdoor situations. But indirect light does have issues producing defining shadows and highlights, and might flatten the image.

As a result, we see mixtures of both in real life, and should do so in Poser as well. Indoors, without natural lighting, softboxes and light reflecting planes (umbrellas, dishes) help us to get a more natural look. Outdoors, additional flashing helps us to adjust the lighting levels and to get some highlights in place.

Infinite Lights, Lighting sets and General Light handling

The Infinite light is the oldest lighting concept in Computer Graphics. It imitates the sun, so far away that all rays run in parallel so the only thing that matters are color, intensity in the scene, and the angle to the scene. Effectively, Infinite lights always are directed towards to 0,0,0 center of the scene. There is no intensity falloff over the distance through the scene either, and it can produce dark, hard edges shadows like sun does at noon in the tropics.

All Poser direct lights have an indicator (quasi-object in the scene, presented in outline style), and a Scale parameter which does nothing to the light itself but alters the size of the indicator for easier interactive handling in the preview window.

Those light also have a similar set of properties:

  • * Include in OpenGL preview OpenGL unfortunately can handle a limited amount of lights only. For most current systems, this limit is 8, at least from a Poser point of view. The preview takes the first 8 lights (in order of creation) but I can prioritize them by ticking this property. So, the preview takes the first 8 in order of creation which have this box ticked. On the other hand: why do I have so many lights in your scene? Am I just softening shadows or trying for omnipresent lighting? Then Indirect lighting might be a better choice. Am I lighting up dark areas? Then using Gamma Correction (Poser Pro, or Poser 10 up) and/or Exposure Correction might help me more. Or perhaps using another renderer (e.g. LuxRender, Octane) instead might be the thing I’m looking for. Your image, your call.
  • * Visible switches the light indicator on/off in the preview. By default, the light indicators are visible when selected for parameter change. When setting up my lighting rig it might be handy to see the non-selected lights too.
  • * Animating when ticked Poser will create animation keys when I change color, intensity or more. But when I am just re-establishing a lighting setup for the whole period, this key-creation is quite annoying as other moments in time just keep their light setting. Then I un-tick the box to switch this key-creation off.
  • * On the ability to switch a light ON/OFF just prevents me from dimming intensities to get rid of the light for a while. Especially when I’m using Indirect Lighting in my render (which will not show up in the preview) I need some extra light just for the preview. Or perhaps I want to make separate renders for each (group of) light(s), to add them up in post. Here I can switch them off before rendering.
  • * Type indicator well, Poser starts each new scene with a colored infinite light, two spot lights and one IBL, and the light control panel defines each new light as a spotlight. From Poser 9 and up that is, earlier versions are different. So here I can change the light type. When creating a light from the menu (Object \ Create Light) I’m offered the choice immediately.


The interesting part of direct lighting is: shadowing. The main shadowing routines are: Raytraced shadowing and Mapped shadowing. In both cases, the shadow intensity is set (or more precise: multiplied) by the Shadow parameter, ranging from 100% (full shadow) to 0% (no shadow).

Raytraced shadowing is straightforward: it’s determined at rendering time, and it requires Raytracing to be selected in the Render Settings. This can either be done in the Manual Settings or in the Auto Settings from the second half of the options on.

The use of Raytraced shadows becomes clear when I’m dealing with transparent objects. Shadow maps are generated from the objects mesh, independent of the material, while raytraced shadows take transparency into account. Well, to some extent that is. Mapped shadows do cater for displacement maps, while raytraced shadows do not handle the refraction color. As a result, light through a stained glass church window will produce a black and white shadow on the floor.

Shadow map:

Shadow map doing displacements:

Raytraced shadows:

Raytraced shadows, stained glass:

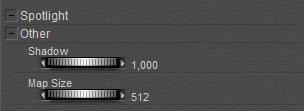

Mapped shadows were (and still are) used to save render time, at the cost of some loss of quality. The controlling parameter is map size, ranging from 64 to 1024, the default 256 sitting in the middle (of the 64 – 128 – 256 – 512 – 1024 series). Since Poser 10 (Pro 2014) there is a separate parameter for shadow maps in preview.

Map size 64:

Map size 1024:

Poser recalculates the shadow maps before each render, and for another speed-up this can be switched off: check Reuse Shadow Maps in the Render menu.

This makes sense as long as position and orientation of objects and lights don’t change, for instance when I’m sorting out materials or camera position. I can do animations though, as shadow maps are calculated on a per-frame basis. When I have made changes that affect shadowing I can just Clear the current set of shadow maps, but leave the Reuse check on for further work. As long as I don’t forget to switch things off before the final render.

Wrapping up: when in draft mode, building up the scene, low to medium resolution shadow maps are fine. Reusing them makes no sense as figures, props and lights all move around in this stage of development. Gradually, increasing map size makes sense, eventually with the Reuse option. Raytracing might be on already to care for refraction and reflection, but one can add raytraced shadows only in a semi-final stage as well.

The next step in shadow quality control addresses the properties Shadow Blur Radius and Shadow Samples (Light properties panel). Both work for Mapped as well as Raytraced shadows:

The first is just feathering the edges of the shadow. Hard edges are the result of tiny light sources, or tropical outdoor sunshine. When light sources grow in size, or when outdoor lighting becomes more arctic, shadows become soft edged and eventually less dark as well (so, reduce the Shadow parameter). The effect of enlarging the Blur radius depends on the map size (when shadow mapping of course). A radius of 2 blurs a 64-pixel map far more than a 1024-pixel map: the blur is apparently absolute, measured in pixels or so. Enlarging the blur also introduces graininess in the shadows; this can be dealt with by enlarging the number of samples as well.

Blur Radius 2, Sample 19 (default) – small, noisy edges on the shadows:

Blur Radius 16, Sample 19 – broad, noisy edges on the shadows:

Blur Radius 16, Sample 190 – broad, smooth edges on the shadows:

Next >>
